Features
- Heavy-duty Cleco motor is the industry standard for reliability
- Durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle
- Planetary gears designed for tool speed changes with minimal parts service and replacement
- Heavy-duty spindle bearings and splined retractable spindles reduces friction, improves torque repeatability, and prolongs life.
- External Torque Adjustment
- Rotating Exhaust Deflector

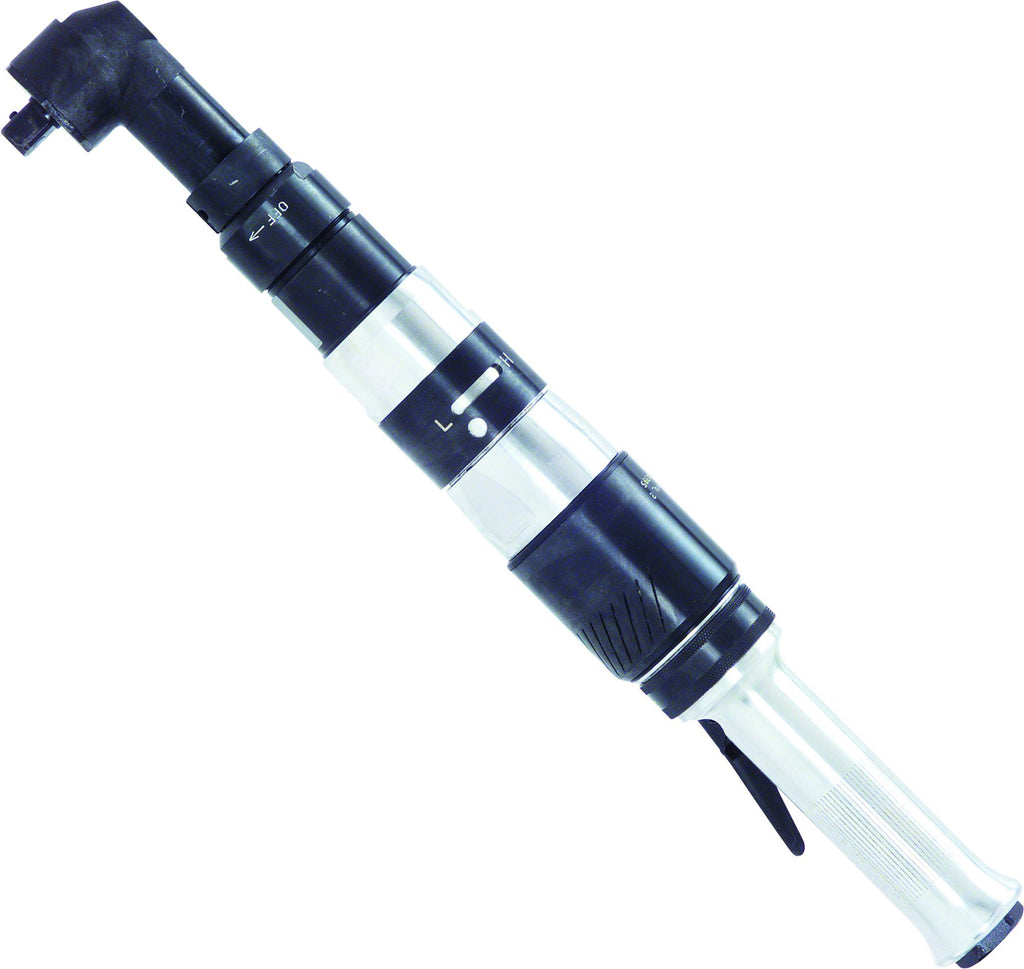

| Model: | 55RNAL-4P-4 |
| Torque Range Min: | 26.0 ft/lbs |
| Torque Range Max: | 54.0 ft/lbs |
| Free Speed: | 330 1/min |
| Weight: | 7.4 lbs |
| Output Drive: | 1/2 Square Drive in|mm |
| Length: | 19.1 in |
| Side To Center: | 0.72 in |
| Angle Head Height: | 1.63 in |
| Air Consumption: | 55 SCFM |
| Air Inlet Size: | 1/2 in |
| Min Hose Id: | 5/8 in |
