Description
Features
- Smooth controlled throttle movement for fast and slow approach.
- Equipped with a safety throttle lever.
- Standard C Yoke Jaws - Special Versions Available
- The operator can adjust exactly the position of the rivet by adjusting the snap holder (stroke 3mm/0.12"). This allows the operator to use the same rivet set for different thicknesses.
- Different force/capacity options to suit the specific riveting requirements
- Select Rivet Set from:- RB 400 for countersink rivets RB 401 for universal head type rivets RB 402 for special reduced universal head rivets
- To develop maximum power the riveter must squeeze the rivet near to the end of the riveting stroke. Therefore, the combined length of the two rivets sets must be correct.
- Determine the correct length of rivet sets as shown

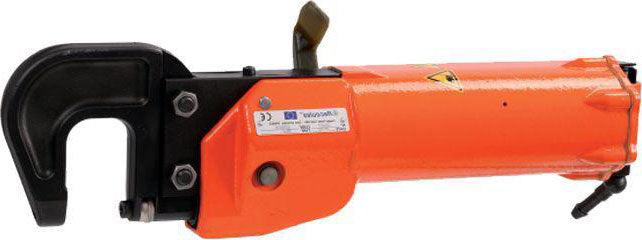

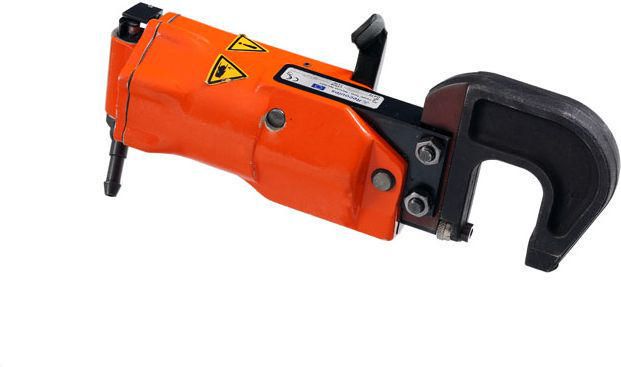

| Model: | 60102010 |
| River Squeezer Set Shank Dia: | Std diameter 5 mm |
| Maximum Force At 6.3 Bar/90 Psi: | 2.2T 4850 lbs |
| Reach: | 50 mm 2.00 in |
| Gap: | 1.38 in |
| Max Travel: | 1.34 in |
| Weight: | 6.7 lbs |
| Length: | 13.4 in |
| Accessories: | Select Rivet Set from:-RB 400 for countersink rivetsRB 401 for universal head type rivetsRB 402 for special reduced universal head rivets |
| Jaws: | Standard C Yoke JawsSpecial Versions Available |
| Piston Stroke: | 0.47 in |
| Snap Holder Adj.: | 0.12 in |
