Description
Features
- High power-to-weight ratio and slim profile nose delivers more torque to hard-to-reach joints
- Heavy-duty gearing is designed to withstand high torque output
- Top and bottom air inlets adds versitility in manufacturing
- Light weight with soft-touch handle for improved ergonomics

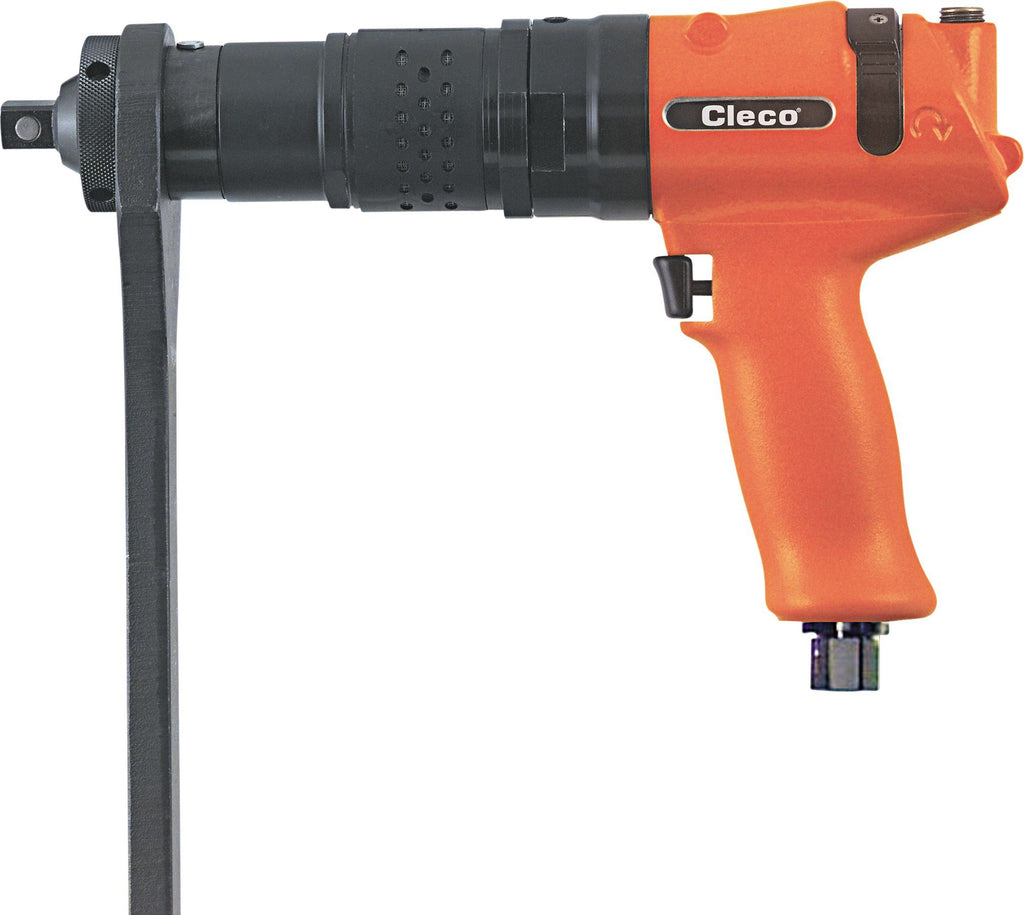

| Model: | 64TTS110D4 |
| Torque Range Min: | 61.0 ft/lbs |
| Torque Range Max: | 81.0 ft/lbs |
| Free Speed: | 225 1/min |
| Weight: | 6.3 lbs |
| Output Drive: | 1/2 Square Drive in|mm |
| Length: | 11.5 in |
| Air Consumption: | 60 SCFM |
| Air Inlet Size: | 3/8 in |
| Min Hose Id: | 1/2 in |
