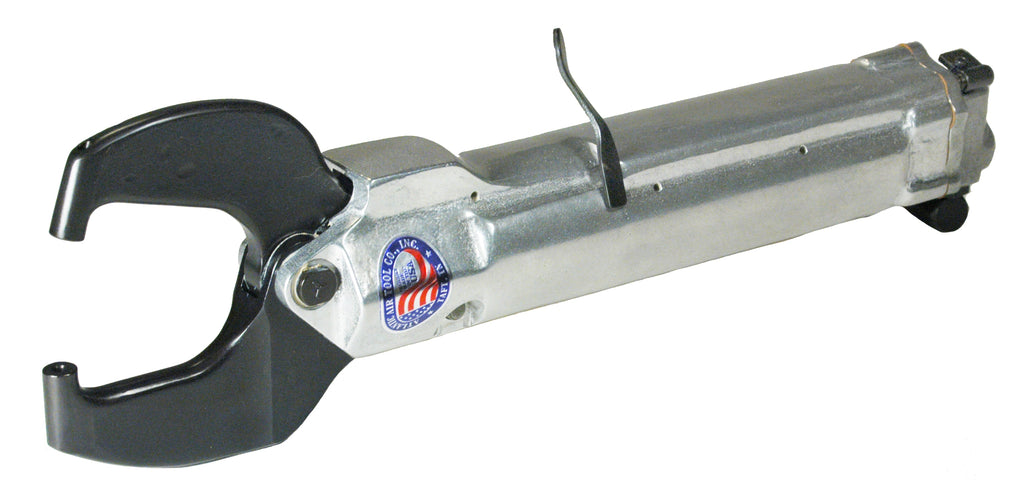

90A15 - Pneumatic Alligator Squeezer
| Model | 90A15 |
|---|---|
| Rivet Capacity Diameter - Aluminum | 1/4 (6.35) |
| Rivet Capacity Diameter - Steel | 3/16 (4.75) |
| Standard Yoke Dimensions - Reach | 1 1/2 (38.1) |
| Standard Yoke Dimensions - CLOSED HEIGHT | 7/8 (22.2) |
| Max Force with 90 PSI (6.21 Bar) Air Pressure PSI (KN) | 9000 (40.05) |
| MOVING JAW Max Travel | 5/8 (15.8) |
| MOVING JAW STROKE MAX POWER | 1/16 (1.57) |
| OVERALL LENGTH | 16 (406.4) |
| WEIGHT WITH JAW (LBS) | 7 (3.17) |
