Description
Features
- Heavy-duty patented telescoping impact mechanism delivers durable performance with minimal reaction to the operator
- Rugged thru-bolt construction eliminates stripped housing threads and expensive repairs
- Positive oil-foam lubrication reduces maintenance and repair costs
- Durable sand casted housing and steel impact housing withstands abusive environments
- Ideal for heavy industries and harsh conditions

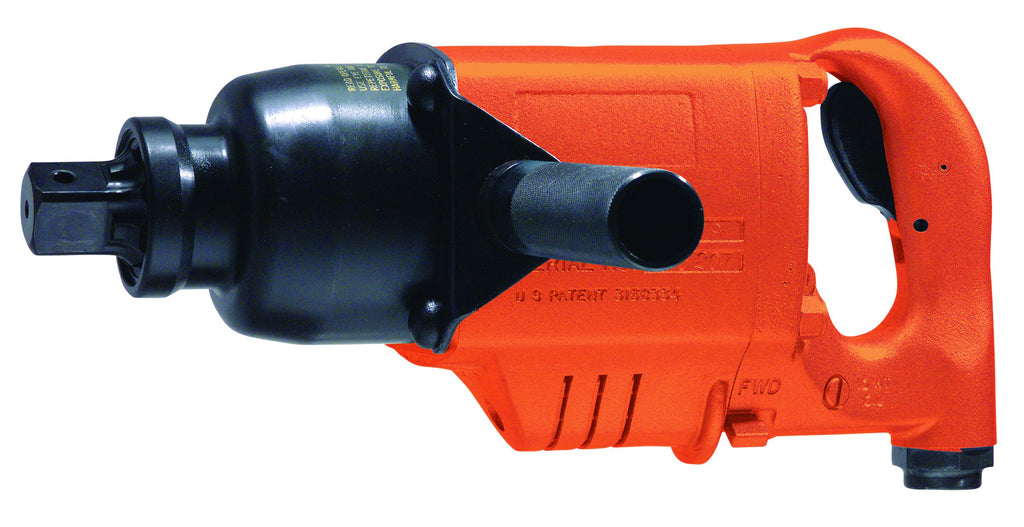

| Model: | WT-2109-8 |
| Torque Range Min: | 750 ft/lbs |
| Torque Range Max: | 1651 ft/lbs |
| Blows Per Minute: | 880 |
| Free Speed: | 4300 1/min |
| Length: | 12.9 in |
| Weight: | 21.0 lbs |
| Air Inlet Size: | 1/2 in |
| Min Hose Id: | 5/8 in |
| Air Consumption: | 100 SCFM |
| Breakaway Torque: | 2502 ft/lbs |
| Drive Size: | 1" |
| Drive Type: | Square |
