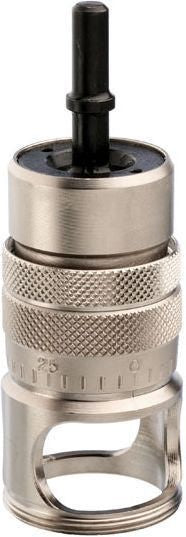

10020065 - RB(I) 307 Microstop Cage

ClecoSKU: SC-0081

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Features

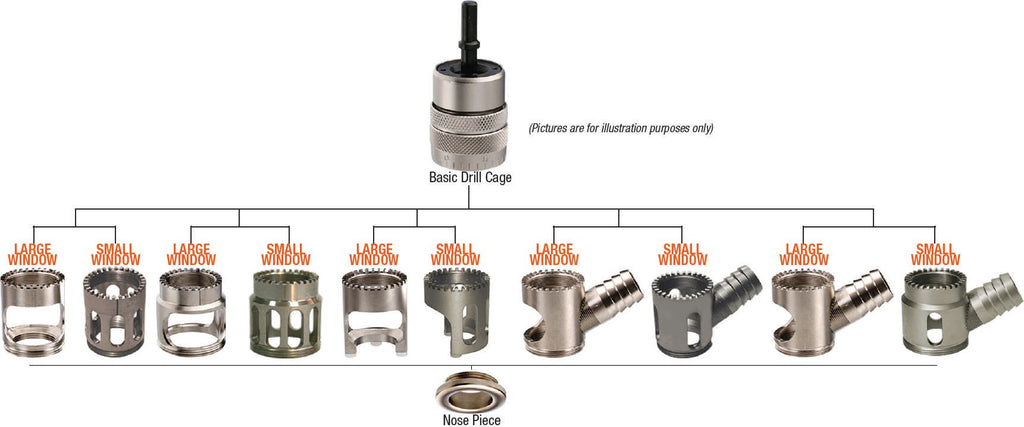

  • Different mounting bases available
  • Reduced dimensions for tight access areas
  • For special composites mounting base with vacuum
  • High precision microstop cage, body in heat treated chrome steel, fully ground throughout. This ball mounted microstop cage includes two needle bearings for best utilisation.
  • When using the RB 307, any misalignment of the microstop cage is corrected by the unique ball pivoting spindle. This assembly ensures perpendicularity throughout the operation at all time.
  • Centring cone of the cutter (120°) for perfect concentricity.
  • Microstop depth adjustment (1 scale division = .001”).
  • Microstop depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage.
Model: 10020065
Weight: 0.364 lbs
Cutter Thread: 1/4"-28
See also 10020065 - RB(I) 307 Microstop Cage
