Description
- 12 Week Lead Time

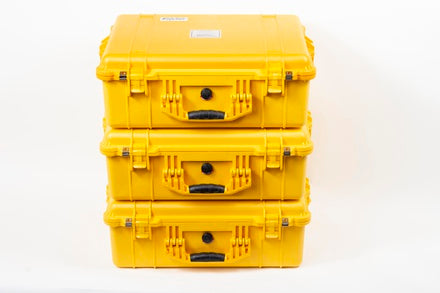

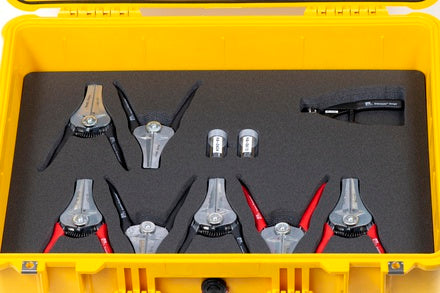

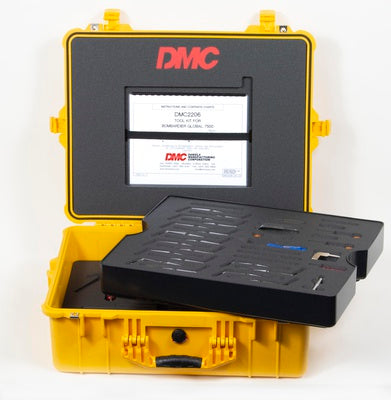

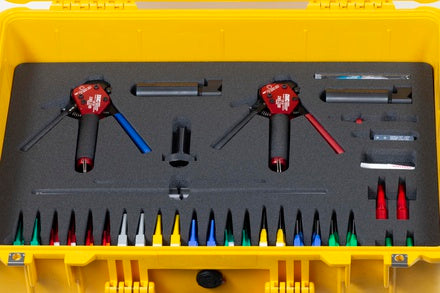

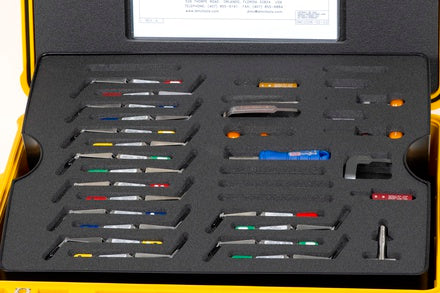

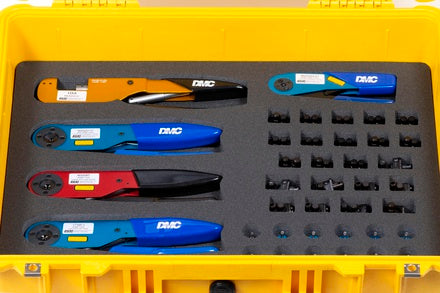

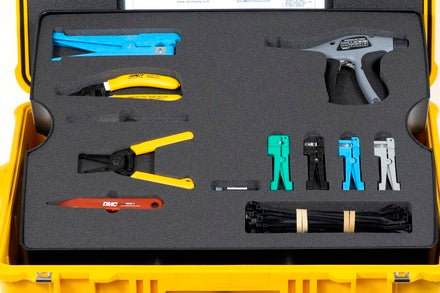

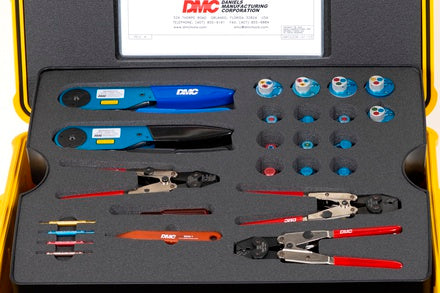

The DMC2206 Bombardier Global 7500 Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC2206 kit includes the tool to application cross reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.
DMC2206 Connector Coverage
EN3155 Contacts
EN3646 Circular
EN4165 Modular
EN2997 Circular
MIL-DTL-24308 D-Summiniature
MIL-DTL-26482 Series I, II
MIL-DTL-26500 Firewall Connectors
MIL-DTL-38999 Series I, II, III
MIL-PRF-39012 RF Coaxial
AS50151 Series “3450”
SAE AS81714 Terminal Modules
MIL-DTL-83723 Series III
Amphenol Aerospace CTV, TV, 91
Bombardier Various
ECS RF Coaxial
Glenair Mighty Mouse, 687 Adaptors
ITT Cannon BKA*, DPX*MA Series
Kidde/Fenwal Fire Detection Connectors
Meggitt 70018M Series
Radiall EPX/EPXB, NSX Series
Rockwell Collins Thin-Line Series
Souriau 8D, 8533 Series
TE Connectivity D-436, PIDG, RTD
| Specification | Value |
|---|---|
| Shipping Weight | 105.0 LBS |
