Description
- Qualified to AS22520/44*

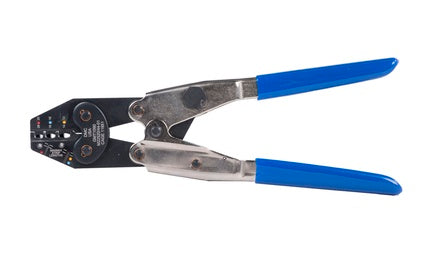

M22520/44-01 COLD APPLIED SPLICE TOOL
The GMT1090 (M22520/44-01) Hand Crimp Tool crimps TE Connectivity’s Cold Applied Environmental Splices (M81824/12-1, -2, -3) sizes 26-20, 18-16, 14-12 AWG in applications where a heat source is not allowed. It is inspected with the G1122 (M22520/39-03) three-step GO/NO-GO gage.
DMC provides custom and standard crimp tools manufactured to OEM or user requirements. The GMT1090 is comparable to TE Connectivity’s AD-1381 Crimp Tool.
| Specification | Value |
|---|---|
| Shipping Weight | 1.15 LBS |
| Military Part Number | M22520/44-01 |
| National Stocking Number | 5120015974088 |
