Description
DMC169A (M83521/7-01) HX4 Tool & Die Sets for Electrical Connectors and Wiring Systems
The DMC169A Tool Kit contains the HX4 (M22520/5- 01) associated Die Sets for MIL-Spec shielding ferrules (MS21980/MS21981) and MIL-Spec coaxial contacts (MS39029/6/13/14,M39029/7/8, M83733/13/14 and 0N089558).

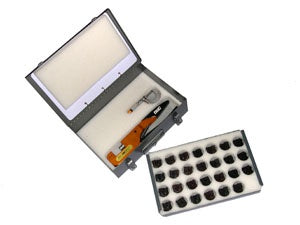

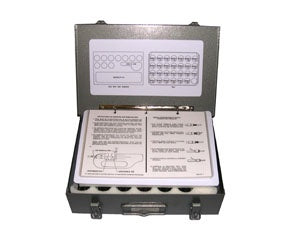

The kit is supplied in a metal case with foam inserts, contoured tool cavities, laminated instruction sheets permanently attached on a ring binder, and contents charts identifying the location of each tool.
The DMC169 kit supplies your staff with the information and accessories necessary to use your HX4 (M22520/5- 01) tools for crimping.
DMC169A TOOL AND ACCESSORY LIST:

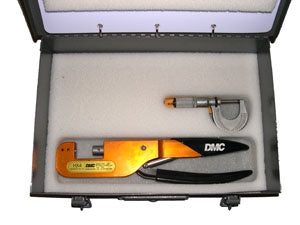

1 HX4 Crimp Tool

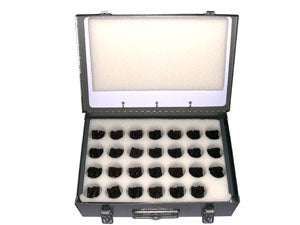

27 Dies Sets
1 Micrometer

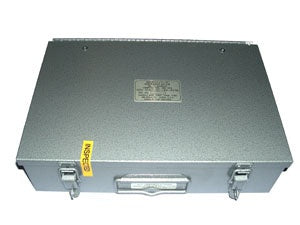

TOOL KIT CONFIGURATION:
Type of Case: Portable
Number of Cases: 1
Color: Gray
Type of Construction: Steel/Aluminum
Application: M22520/5-01
Type of Inserts: Unicellular Polyethylene Foam with Die Cut Tool Cavities
| Specification | Value |
|---|---|
| Shipping Weight | 22.0 LBS |
| Military Part Number | M83521/7-01 |
| National Stocking Number | 5180001668336 |
