Description

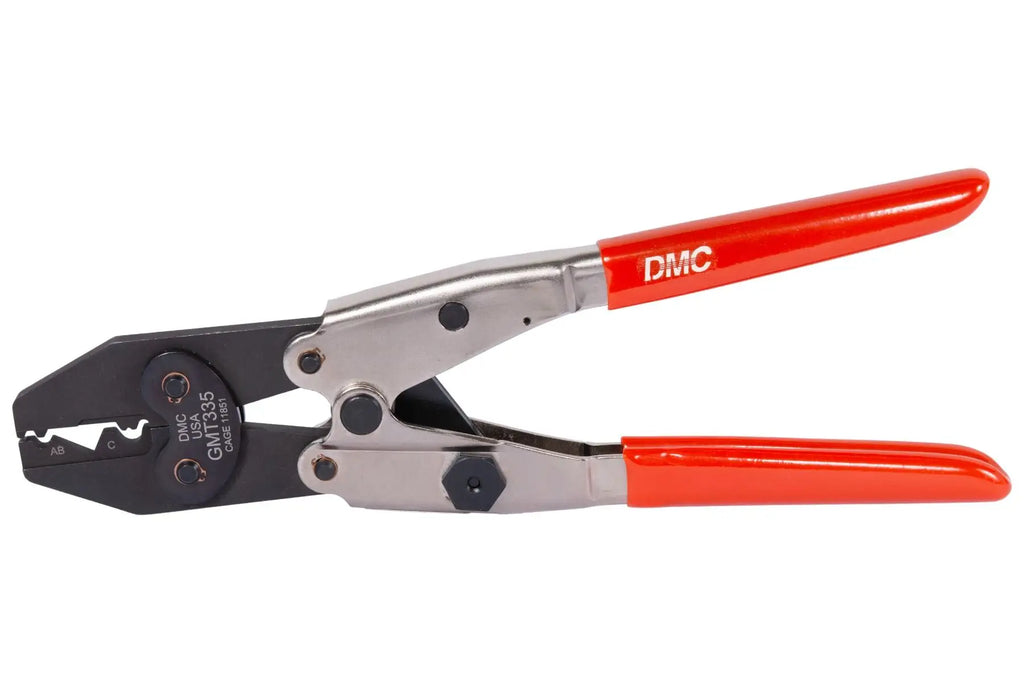

The GMT335 Tool is designed to crimp M7928/15 -1, -2, -3, -4, -5, & -6 terminals. Its cavities are designed for uninsulated conductor crimp barrels. The cavity AB crimps sizes 22-18 AWG and has a gaging dimension of GO: 0.0620 & NO-GO: 0.0670. The cavity C crimps sizes 12-10 AWG and has a gaging dimension of GO: 0.1120 & NO-GO: 0.1170.
