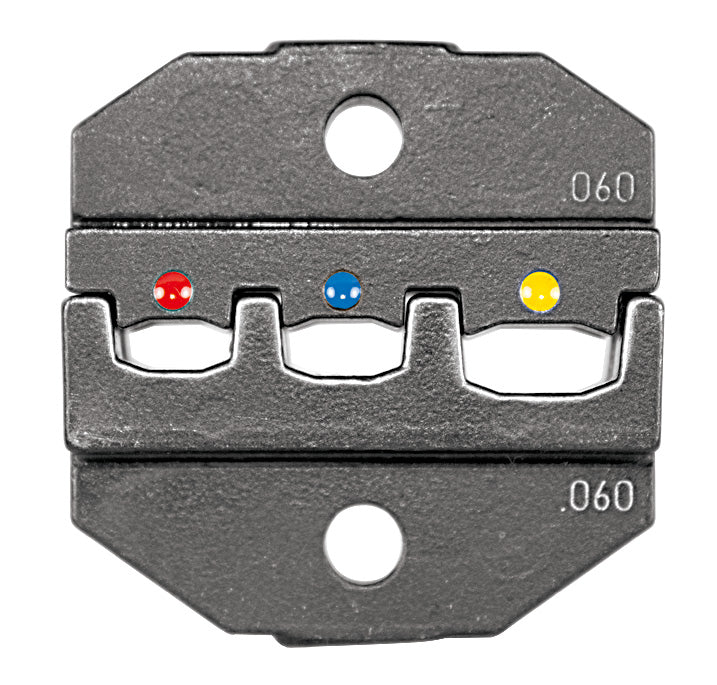

624 060 3 0 RT - CRIMP DIE SET for Plasti Grip

Rennsteig USSKU: 624-060-3-0-RT

Price:
$69.89 $81.28

Lead Time:
Special Order

Documentation

Description

Complete box with 1 die set, spare parts, and reference data sheet for crimping ofPlasti-GripTerminal, Cable Range 0.50 - 6.00 SQ-MM. For Red, Blue, and Yellow.

For example to use with:

Picture Size A Size B Size C Size M Sample application
(inches)
RA2243 drawing .86 .29 .25 .71 Thomas & Betts RA2243

RA2243

RA853 drawing .86 .26 .25 .74 Thomas & Betts RA853

RA853

RA2253 drawing .86 .29 .25 .71 Thomas & Betts RA2253

RA2253

RA2213 drawing .86 .25 .25 .71 Thomas & Betts RA2213

RA2213

RA873 drawing .89 .31 .25 .74 Thomas & Betts RA873

RA873

RA723 drawing 1.07 .46 .31 .84 Thomas & Betts RA723

RA723

RA863 drawing 0.89 .31 .25 .74 Thomas & Betts RA863

RA863

RB713 drawing 1.08 .47 .31 .81 Thomas & Betts RB713

RB713

RB863 drawing .89 .31 .25 .71 Thomas & Betts RB863

RB863

RB2253 drawing .87 .29 .25 .71 Thomas & Betts RB2253

RB2253

RB2213 drawing .87 .25 .25 .71 Thomas & Betts RB2213

RB2213

RB733 drawing 1.17 .53 .35 .87 Thomas & Betts RB733

RB733

RB2233 drawing .87 .29 .25 .71 Thomas & Betts RB2233

RB2233

RB853 drawing .89 .31 .25 .71 Thomas & Betts RB853

RB853

RB2573 drawing .97 .38 NA NA Thomas & Betts RB2573

RB2573

RB250 drawing .91 .29 NA NA Thomas & Betts RB250

RB250

RB873 drawing .89 .31 .25 .71 Thomas & Betts RB873

RB873

RB723 drawing 1.08 .47 .31 .84 Thomas & Betts RB723

RB723

RC2213 drawing 1.00 .37 .27 .81 Thomas & Betts RC2213

RC2213

RC703 drawing 1.21 .53 .31 .94 Thomas & Betts RC703

RC703

RC713 drawing 1.12 .53 .32 .86 Thomas & Betts RC713

RC713

RC863 drawing 1.00 .37 .27 .81 Thomas & Betts RC863

RC863

RC363 drawing 1.00 .37 .27 .81 Thomas & Betts RC363

RC363

RC753 drawing 1.37 .72 .52 1.02 Thomas & Betts RC753

RC753

RC2223 drawing 1.00 .37 .27 .81 Thomas & Betts RC2223

RC2223

RC2203 drawing .97 .31 .27 .81 Thomas & Betts RC2203

RC2203

RC250 drawing 1.10 .29 NA NA Thomas & Betts RC250

RC250

RC733 drawing 1.27 .59 .35 .98 Thomas & Betts RC733

RC733

RC484 drawing 1.203 .24 .40 .20 Thomas & Betts RC484

RC484
