Description

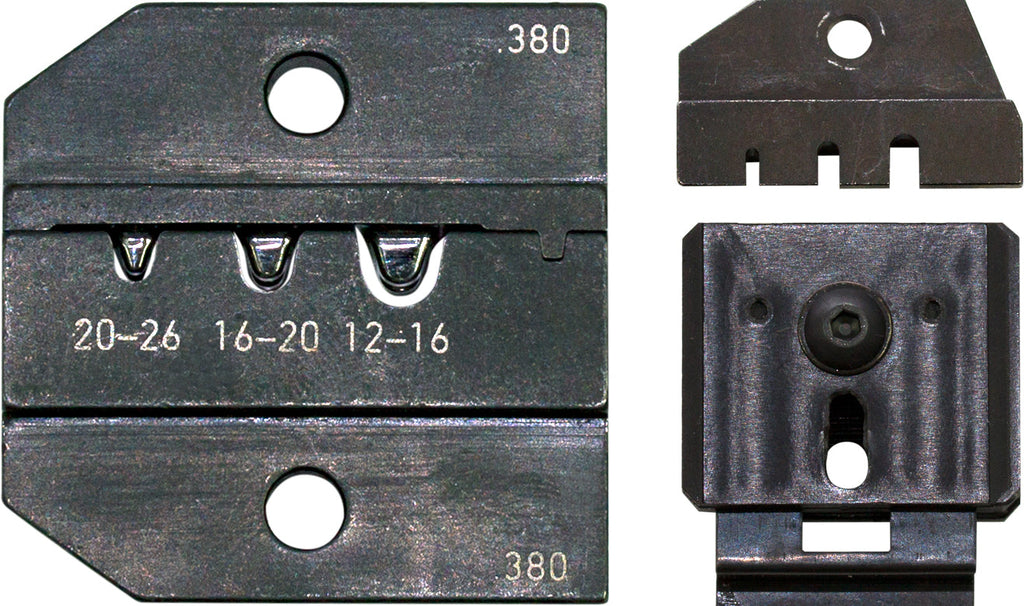

CRIMP DIE SETfor crimping of MiniSeal Splices/Environmental Spices (barrel and a separate, heat-shrinkable, transparent sealing sleeve).
This tool is comparable with M22520/37.
| Capacity/Connector | CMA Range | SQ-MM Range | 1:1 Splice (AWG Size) | Color Code | P/N |
| 304-1510 | 0.15 - 0.75 | 26 - 20 | Red | D-436-36 | |
| 779-2680 | 0.39 - 1.34 | 20 - 16 | Blue | D-436-37 | |
| 190-6755 | 0.95 - 3.37 | 16 - 12 | Yellow | D-436-38 | |
| Connector | |||||
