Documentation
Description
- According to the aerospace standard AS6173/3 FEDERAL SUPPLY CLASS 5120
- Clean and smooth cut without crushing or deformation
- Easy cutting with one-hand operation
- Cutting Capacity:max. 1/0 AWG | Ø 19/32"
- For Cu + Al multi-conductor cable, strand, and multi-stranded wire
- Suitable for universal use for cutting and dismantling
- Automatic reopening through spring-loaded handles (depends on version)
- Easy and clean cutting performance through precision-ground blades
- Single and multiple wires
- Lock closure (depends on variation) and distance stops for high safety comfort
- Guard prevents operators fingers from being pinched
- Material: special tool steel, forged

|

|
| Cut affected with a Cable Shear: easy, clean cut without any deformation of the cable. | Cut performed with a Diagonal Cutter: high effort required, inaccurate cut, considerable deforming, and crushing of the cable. |
| P/N | 700 015 3 RT |
|---|---|

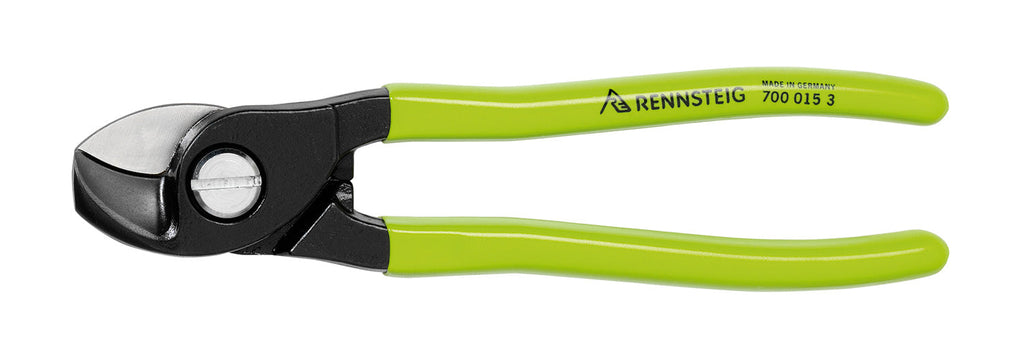

| Description | Compact Cable Cutter (RG) |
| Handle Type | Dip Coated |
| Capacity | up to 1/0 AWG |
| 19/32" | |
| Length |
6 1/2" |
| Weight | 0.55 lbs. |
