Documentation
Description
- Designed to strip copper cable(incl.PTFE)ranging from 0.005-0.14 SQ-MM (AWG 40-26)
- Stripping Capacity: 40 - 26 AWG | 0.005 - 0.14 SQ-MM
- Fixed stop for wire ranges 0.02/0.01 SQ-MM (AWG 34/36) and 0.008/0.005 SQ-MM (AWG38/40)
- Swing stop for wire ranges 0.14/0.08 SQ-MM (AWG 26/28) and 0.06/0.03 SQ-MM (AWG30/32)
- 2 stripping positions, on front and backside, laser marked
| P/N | 8007 5001 3 |
|---|---|

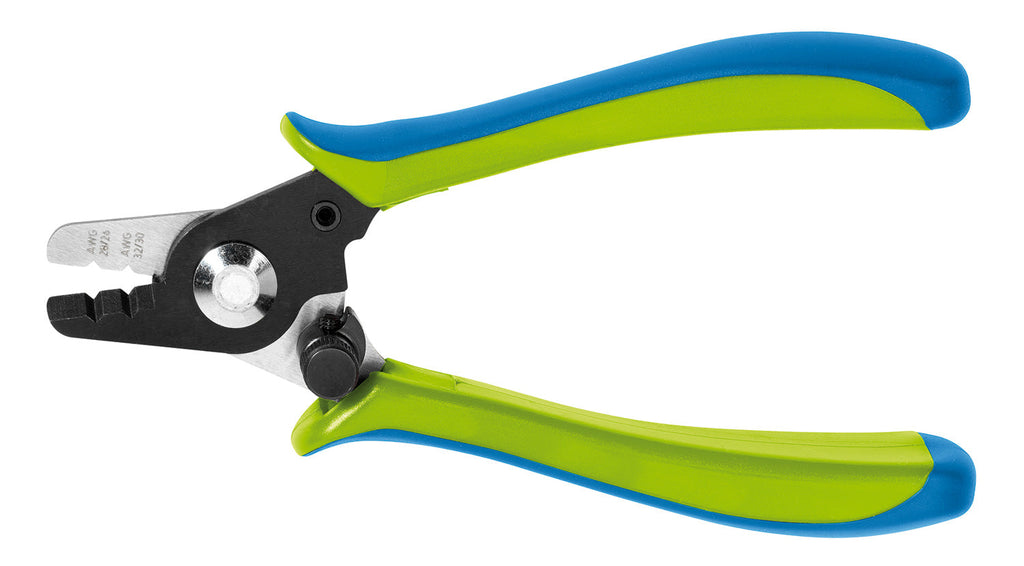

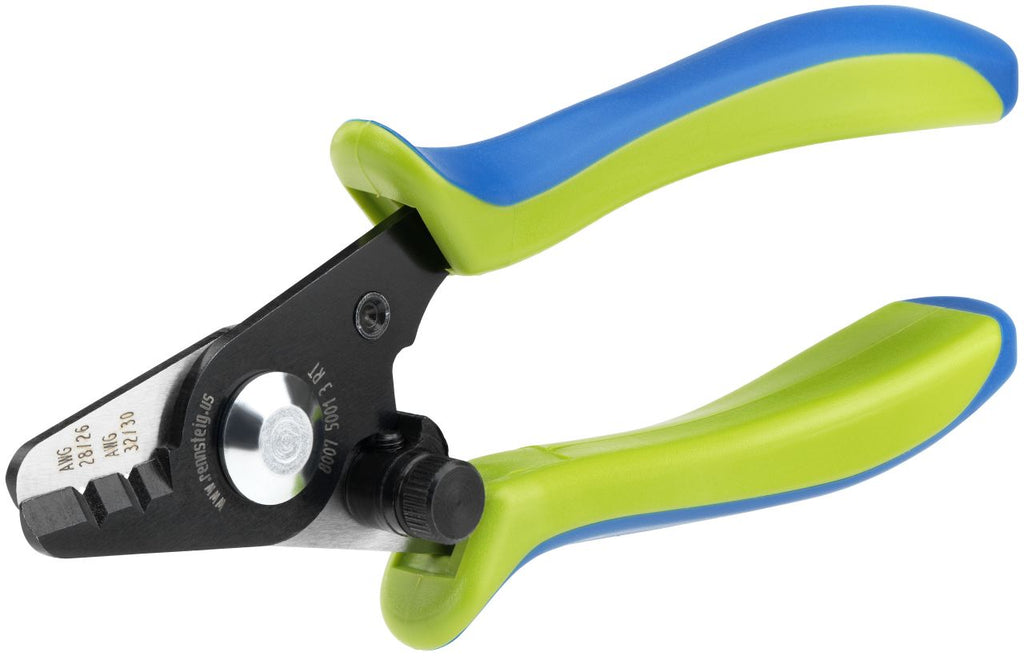

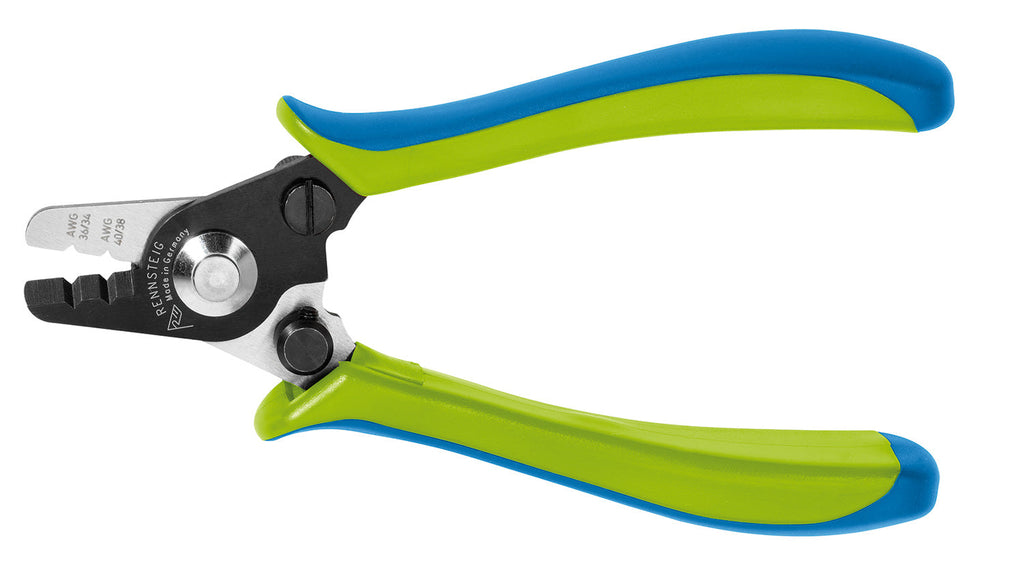

| Description | Microstripper for PTFE insulated cables |
| Handle Type | Two-component handles |
| Capacity | 40 - 26 AWG | 0.005 - 0.14 SQ-MM |
| Length |
5 5/16" |
| Weight | 0.2 lbs. |
