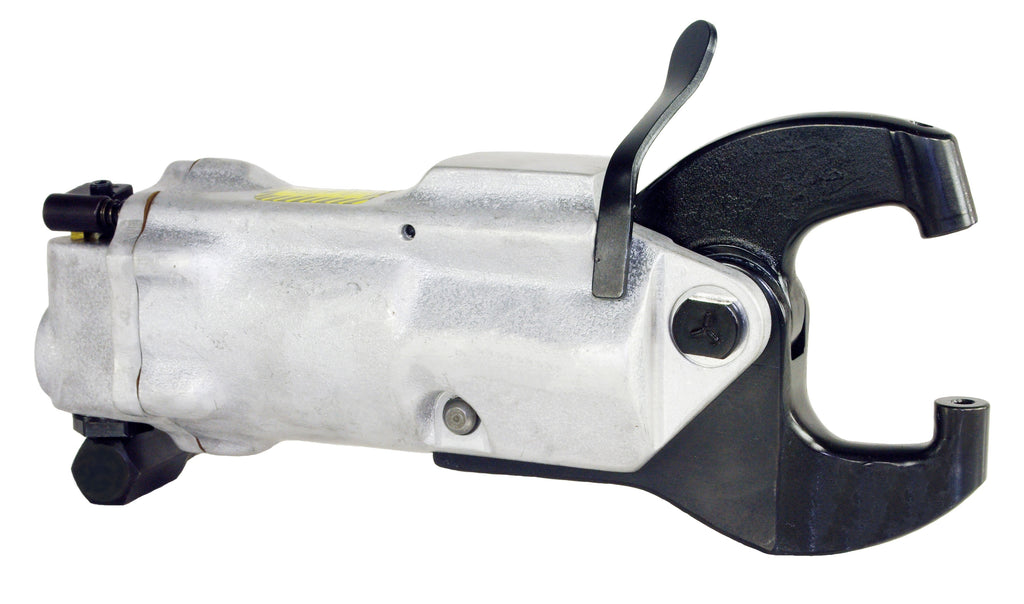

DL4H22A - Tower Alligator Squeezer 2 1/4" Reach, High Force
| Model | DL4H22A |
|---|---|
| Series |
4 |
| Rivet Capacity Diameter - Aluminum | 1/8 (3.17) |
| Rivet Capacity Diameter - Steel | 3/32 (2.36) |
| Standard Yoke Dimensions - Reach | 2 1/4 (57.15) |
| Standard Yoke Dimensions - Closed Height | 7/8 (22.2) |
| Max Force with 90 PSI (6.21 Bar) Air Pressure PSI (KN) | 3000 (13.35) |
| Moving Jaw Max Travel | 7/8 (22.2) |
| Moving Jaw Stroke Max Power | 1/16 (1.57) |
| Overall Length | 10 (254) |
| Weight with Jaw (Lbs) | 4 1/2 (2.04) |
