Description

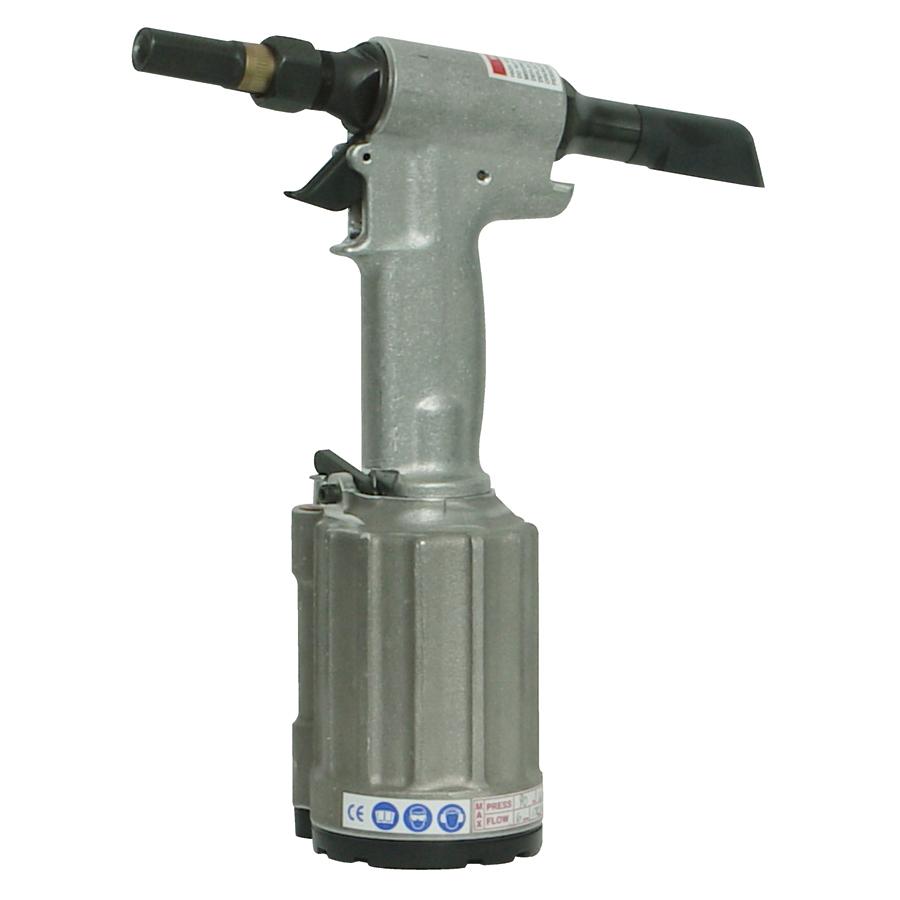

Huck® Pneudraulic Riveter, 0.650 Inch (16.51mm) Stroke, 2.9 cfm (82.11 lpm) Flow Rate, Pull Capacity: 2670lb. at 90 psi (11.88kN at 6.2 bar), Air Pressure 90 psi (6.20 bar), Speed/Cycles 20 per min, Power Source: 90 psi Shop Air, Hydraulic Fluid: Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent, 32 to 125 Deg F (0 to 51.7 Deg C) Operating Temperature, Cylinder Diameter: 3.479 Inch (88.30mm), Length of Head: 8.780 Inch (223.00mm), Center to Edge: 0.787 Inch (20.00mm), Weight 4.4lb. (2.00kg). Nose assemblies, hydraulic power equipment, hose assembly and nose tips sold separately.
| Hydraulic Fluid | : | Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent |
| Air Pressure | : | 90 psi (6.20 bar) |
| Center to Edge | : | 0.787 Inch (20.00mm) |
| Weight | : | 4.4lb. (2.00kg) |
| Item | : | Pneudraulic Riveter |
| Speed/Cycles | : | 20 per min |
| Length of Head | : | 8.780 Inch (223.00mm) |
| Flow Rate | : | 2.9 cfm (82.11 lpm) |
| Cylinder Diameter | : | 3.479 Inch (88.30mm) |
| Pull Capacity | : | 2670lb. at 90 psi (11.88kN at 6.2 bar) |
| Power Source | : | 90 psi Shop Air |
| Stroke | : | 0.650 Inch (16.51mm) |
| Operating Temperature | : | 32 to 125 Deg F (0 to 51.7 Deg C) |
