Description

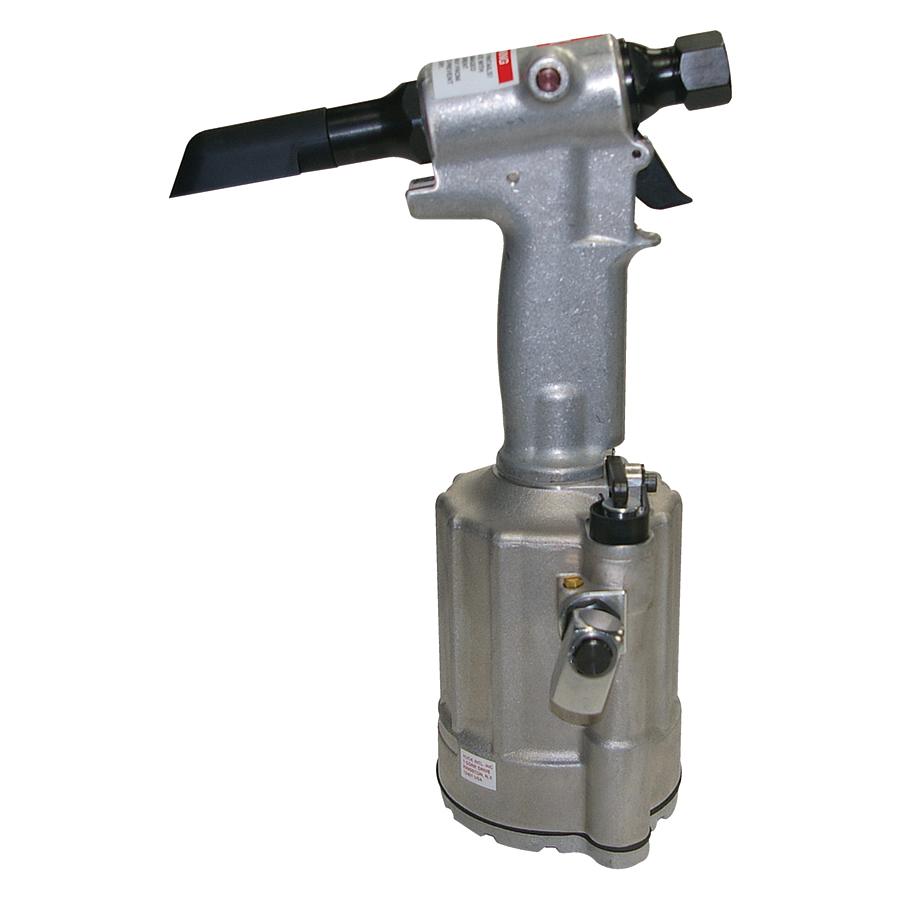

Huck® Pneudraulic Riveter, 0.75 Inch (19.05mm) Stroke, 8.5 scfm (241 lpm) Flow Rate, Pull Capacity: 3889lb. at 90 psi (17.3kN at 6.2 bar), Air Pressure 90 psi (6.20 bar), Speed/Cycles 20 per min, Power Source: 90 psi Shop Air, Hydraulic Fluid: Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent, 32 to 125 Deg F (0 to 51.7 Deg C) Operating Temperature, Cylinder Diameter: 4.105 Inch (104.26mm), Overall Height: 11.575 Inch (294mm), Length of Head: 8.595 Inch (218.31mm), Center to Edge: 0.787 Inch (20.00mm), Fastener Type: 3/16 Inch Blind Bolts, 1/4 Inch Blind Rivets, Includes Pintail Deflector, Weight 5.1lb. (2.31kg). Nose assemblies, hydraulic power equipment, hose assembly and nose tips sold separately.
| Includes | : | Pintail Deflector |
| Length of Head | : | 8.595 Inch (218.31mm) |
| Fastener Type | : | 3/16 Inch Blind Bolts, 1/4 Inch Blind Rivets |
| Air Pressure | : | 90 psi (6.20 bar) |
| Overall Height | : | 11.575 Inch (294mm) |
| Center to Edge | : | 0.787 Inch (20.00mm) |
| Weight | : | 5.1lb. (2.31kg) |
| Item | : | Pneudraulic Riveter |
| Speed/Cycles | : | 20 per min |
| Operating Temperature | : | 32 to 125 Deg F (0 to 51.7 Deg C) |
| Flow Rate | : | 8.5 scfm (241 lpm) |
| Cylinder Diameter | : | 4.105 Inch (104.26mm) |
| Pull Capacity | : | 3889lb. at 90 psi (17.3kN at 6.2 bar) |
| Power Source | : | 90 psi Shop Air |
| Stroke | : | 0.75 Inch (19.05mm) |
| Hydraulic Fluid | : | Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent |
