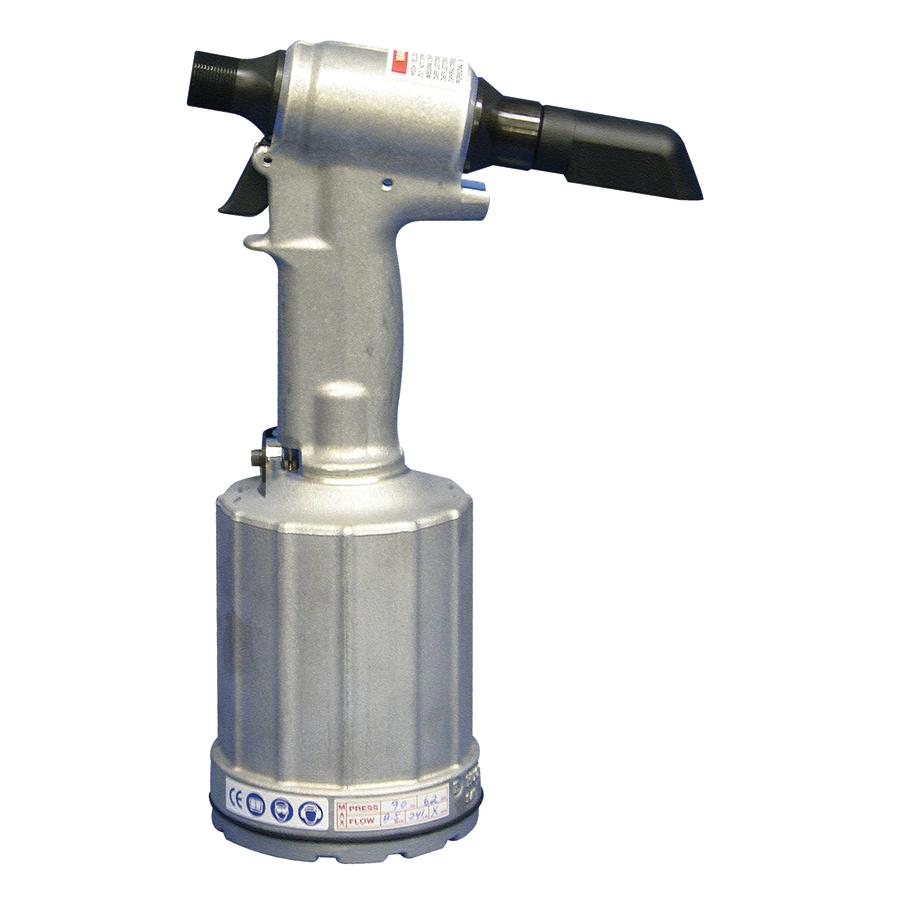

2025 - Pneudraulic Power Riveter

HuckSKU: SA-2860

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Huck® Pneudraulic Riveter, 0.675 Inch (17.15mm) Stroke, 8.5 scfm (241 lpm) Flow Rate, Pull Capacity: 5290lb. at 90 psi (23.531kN at 6.2 bar), Air Pressure 90 psi (6.20 bar), Speed/Cycles 30 per min, Power Source: 90 psi Shop Air, Hydraulic Fluid: Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent, 32 to 125 Deg F (0 to 51.7 Deg C) Operating Temperature, Cylinder Diameter: 4.355 Inch (110.62mm), Overall Height: 12.536 Inch (318.41mm), Length of Head: 8.370 Inch (212.60mm), Center to Edge: 0.906 Inch (23.01mm), Fastener Type: 3/16 Inch, 1/4 Inch, Weight 5lb. (2.27kg). Nose assemblies, hydraulic power equipment, hose assembly and nose tips sold separately.

Hydraulic Fluid : Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent
Length of Head : 8.370 Inch (212.60mm)
Air Pressure : 90 psi (6.20 bar)
Overall Height : 12.536 Inch (318.41mm)
Center to Edge : 0.906 Inch (23.01mm)
Weight : 5lb. (2.27kg)
Item : Pneudraulic Riveter
Speed/Cycles : 30 per min
Operating Temperature : 32 to 125 Deg F (0 to 51.7 Deg C)
Flow Rate : 8.5 scfm (241 lpm)
Cylinder Diameter : 4.355 Inch (110.62mm)
Pull Capacity : 5290lb. at 90 psi (23.531kN at 6.2 bar)
Power Source : 90 psi Shop Air
Stroke : 0.675 Inch (17.15mm)
Fastener Type : 3/16 Inch, 1/4 Inch
See also 2025 - Pneudraulic Power Riveter
