Description

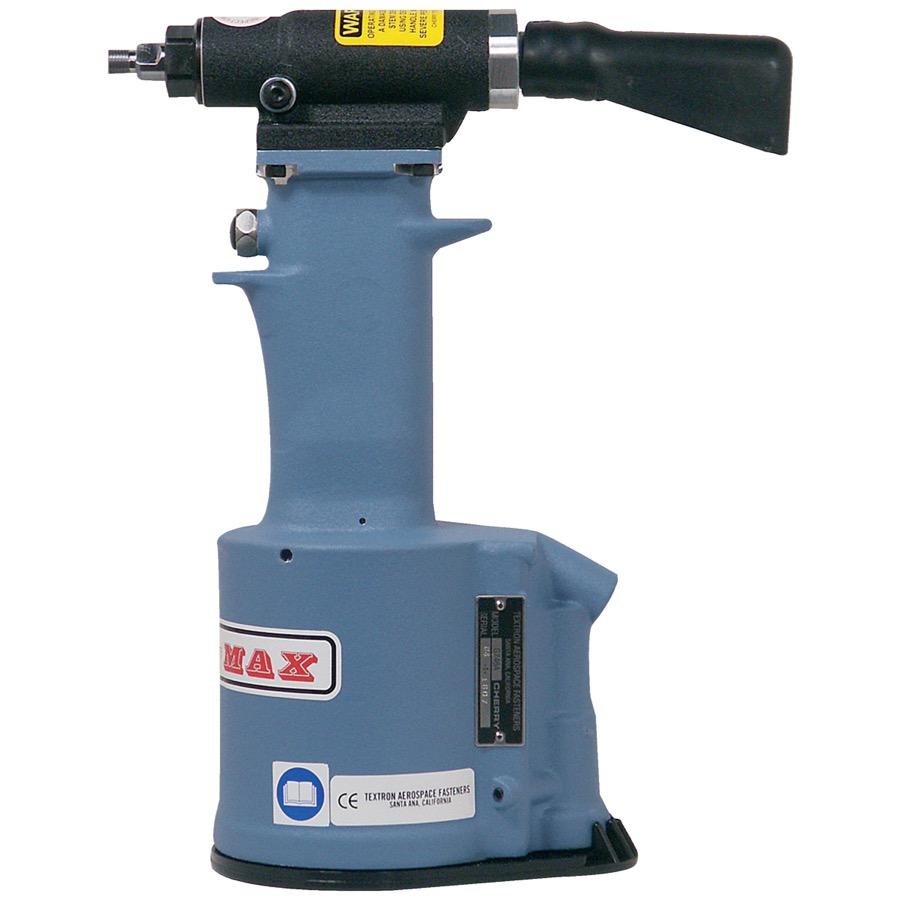

The G746A is a pneumatic-hydraulic tool designed specifically for installation of CherryMAX Bulb, CherryMAX 'AB' wiredraw and CherryLOCK 'A' wiredraw rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.
This tool utilizes straight, offset and right angle pulling heads.
Extensions are available for extending the pulling heads to reach limited access areas.
A comfortable grip for one handed operation in any position.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
Cycle Time: approximately one second
Noise Level: 72 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .25 SCF / cycle (7.08 L / cycle)
See also G746A - Cherrymax® Power Riveter
This tool utilizes straight, offset and right angle pulling heads.
Extensions are available for extending the pulling heads to reach limited access areas.
A comfortable grip for one handed operation in any position.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
Cycle Time: approximately one second
Noise Level: 72 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .25 SCF / cycle (7.08 L / cycle)
| STROKE | .875" |
| PULLING FORCE | 1,850 lbs (839 kgs) |
| WEIGHT | 4.25 lbs (1.9 kgs) |
