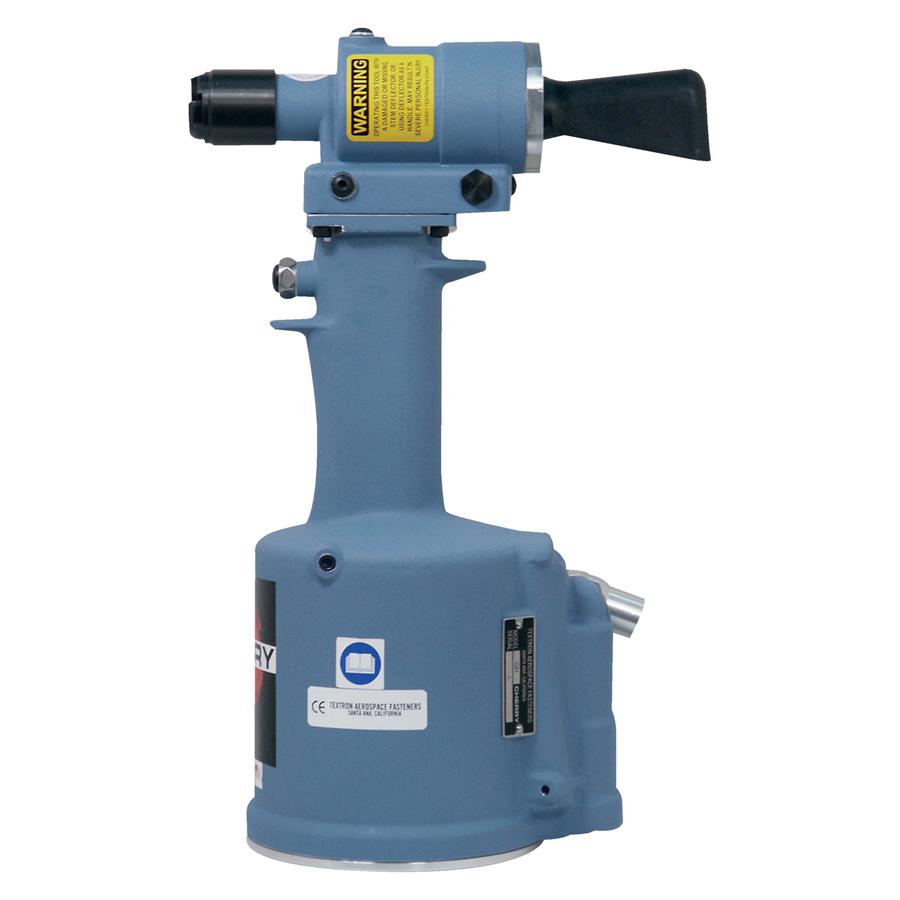

G84 - Medium Duty Lockbolt Power Riveter

CherrySKU: SA-2873

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

The G84 pneumatic-hydraulic tool is a heavy-duty production tool designed for high speed, reliable installation of the most popular sizes of aircraft Lockbolts. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

This tool incorporates a bayonet attachment for quick change of pulling heads. This tool can also be used to install blind bolts and blind rivets.

A comfortable grip for one handed operation in any position. Compatible with Huck 352 & 230 riveter pulling heads.

Specifications:

Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.

Cycle Time: approximately one second

Noise Level: 80 dB A)

Vibration: less than 2.5 m/s2

Air Consumption: .29 SCF / cycle (8.21L / cycle)
STROKE 9/16"
PULLING FORCE 5,750 lbs (2,608 kgs)
WEIGHT 7.7 lbs (3.5 kgs)
See also G84 - Medium Duty Lockbolt Power Riveter
