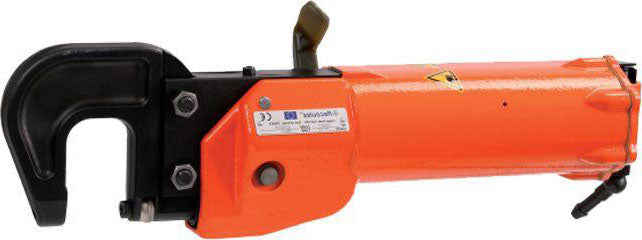

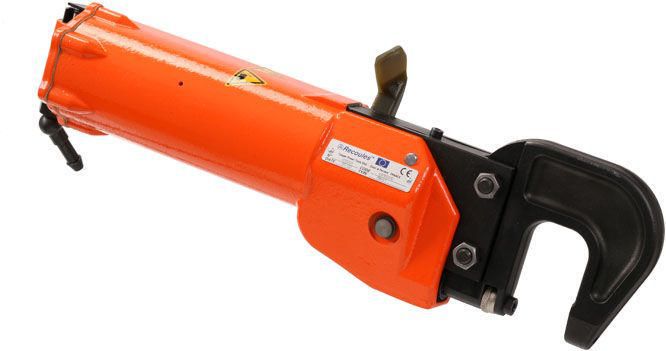

60102110 - RB41/RB42 Series Compression Riveter C-yoke Type

ClecoSKU: SA-0036

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Features

  • Smooth controlled throttle movement for fast and slow approach.
  • Equipped with a safety throttle lever.
  • Standard C Yoke Jaws - Special Versions Available
  • The operator can adjust exactly the position of the rivet by adjusting the snap holder (stroke 3mm/0.12"). This allows the operator to use the same rivet set for different thicknesses.
  • Different force/capacity options to suit the specific riveting requirements
  • Select Rivet Set from:- RB 400 for countersink rivets RB 401 for universal head type rivets RB 402 for special reduced universal head rivets
  • To develop maximum power the riveter must squeeze the rivet near to the end of the riveting stroke. Therefore, the combined length of the two rivets sets must be correct.
  • Determine the correct length of rivet sets as shown
Model: 60102110
River Squeezer Set Shank Dia: Std diameter 3/16"
Maximum Force At 6.3 Bar/90 Psi: 2.2T 4850 lbs
Reach: 50 mm 2.00 in
Gap: 1.38 in
Max Travel: 1.34 in
Weight: 6.7 lbs
Length: 13.4 in
Accessories: Select Rivet Set from:-RB 400 for countersink rivetsRB 401 for universal head type rivetsRB 402 for special reduced universal head rivets
Jaws: Standard C Yoke JawsSpecial Versions Available
Piston Stroke: 0.47 in
Snap Holder Adj.: 0.12 in
