Description

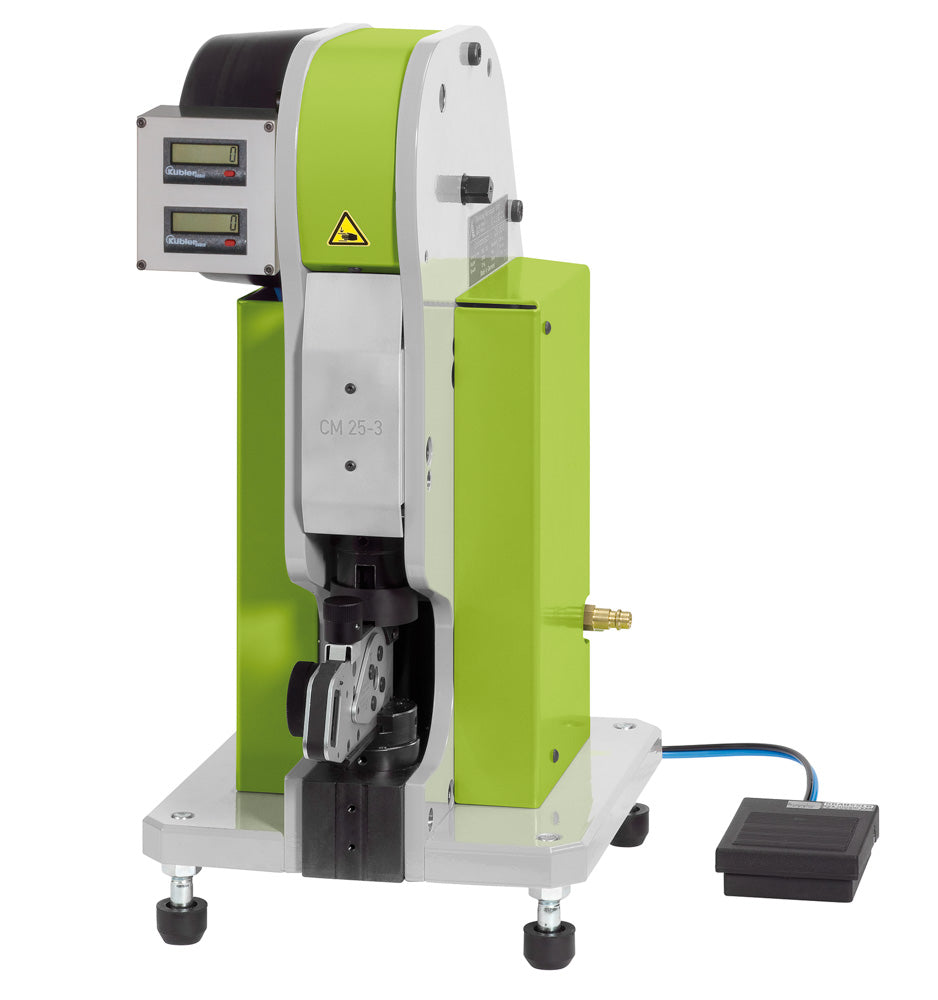

- CM25-3 crimping machine without crimping unit, without positioning guide
- Compact, maintenance-free table-top device
- Hand or foot actuation
- Height-adjustable feet
- Quick and simple retooling makes it suitable for short- and medium-run production
- Crimping units for insulated and non-insulated wire-end ferrules from 0.08 to 10 mm²
- Automatic crimping of insulated and non-insulated wire-end ferrules according to DIN 46 228
- Self-adjusting adaptation to the required size of wire-end ferrule
- Adjustable insertion guide for insulated wire-end ferrules
- Square or hexagonal crimp profile with profiled crimp surfaces
| P/N | 636 025-3 RT |
|---|---|
| Description |
CM 25-3 for 4/8 indent crimping units. (See below) |
| Capacity | Depends on crimping unit |
| Machine Dimensions | 13" x 20" x 11" |
| Weight | 74 lbs. |
Single Crimping Units, compatible with all CM25-3 models
Crimping Units (Sold Separately):

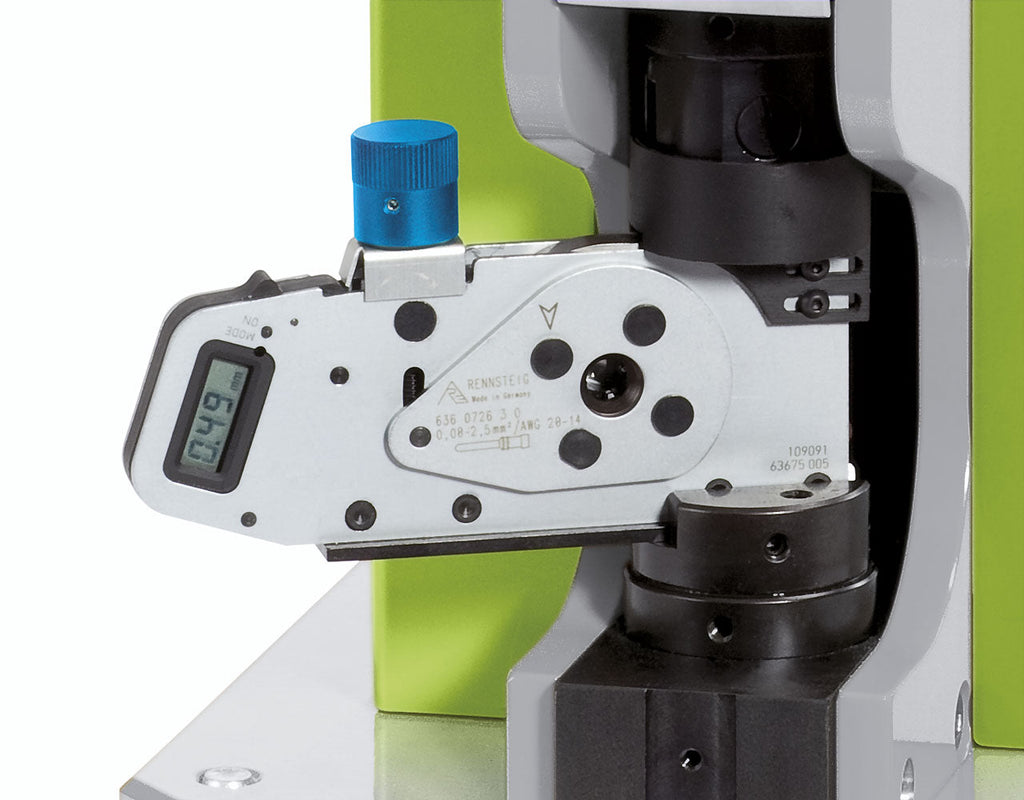

636 0726 3 0 RT: Crimping unit 8.72-6, digital readout (AWG 28-14 | 0.08 – 2.5 SQ-MM)
636 0736 3 0 RT : Crimping unit 8.73-6, digital readout (AWG 32-20 | 0.03 - 0.5 SQ-MM)
See also 636 025-3 RT - Crimping machines CM 25 - 3 4/8 - indent acc. to MIL/SAE AS22520
