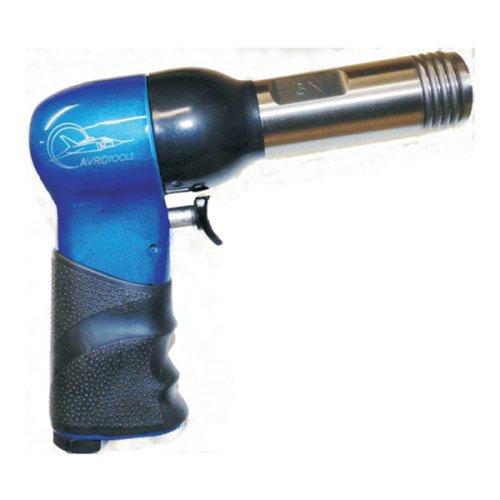

10040 - Rivet Hammer 4X

Avro ToolsSKU: SA-3052

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

The AVRO series of Riveting Hammers features an “ERGONOMIC” housing design for maximum operator comfort. The comfort “ERGO GRIP”acts as a thermal protector and isolates vibrations. A spool valve system delivers slow, heavy blows necessary to drive rivets. An extremely sensitive teasing throttle permits precise control.

General

  • Air Inlet: 1/4” NPT Standard
  • Air pressure: 90 psi (620 kpa).
  • Shank Diameter .401”

Specifictions

  • Aluminum Capacity: 1/4"
  • Steel Capacity: 3/16"
  • Blows/Minute: 1700
  • Bore: 1/2" (12.7 mm)
  • Stroke: 3-1/16" (77.5 mm)
  • Length: 8-5/16" (211 mm)
  • Weight: 3.05 lbs (1.38 kg)
