10050 - Rivet Hammer 5X

Avro ToolsSKU: SA-3054

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

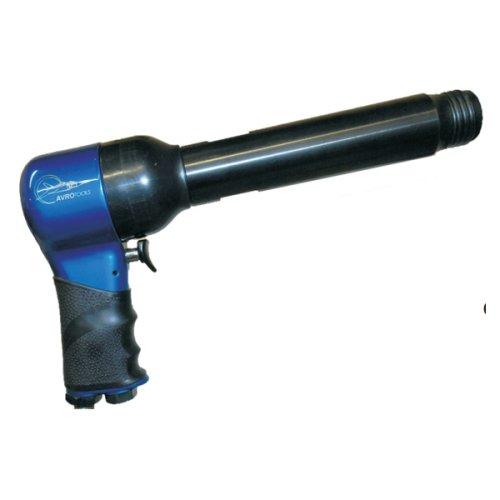

The AVRO series of Riveting Hammers features an “ERGONOMIC” housing design for maximum operator comfort. The comfort “ERGO GRIP”acts as a thermal protector and isolates vibrations. A spool valve system delivers slow, heavy blows necessary to drive rivets. An extremely sensitive teasing throttle permits precise control.

General

  • Air Inlet: 1/4” NPT Standard
  • Air pressure: 90 psi (620 kpa).
  • Shank Diameter .401”

Specifictions

  • Aluminum Capacity: 1/4"
  • Steel Capacity: 3/16"
  • Blows/Minute: 1800
  • Bore: 3/4" (19.1 mm)
  • Stroke: 2-11/16" (68.3 mm)
  • Length: 8-5/16" (227 mm)
  • Weight: 4.55 lbs (2.1 kg)
