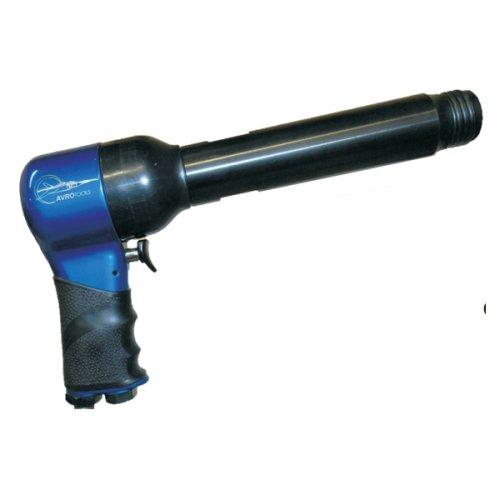

10070 - Rivet Hammer 7X

Avro ToolsSKU: SA-3056

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

The AVRO series of Riveting Hammers features an “ERGONOMIC” housing design for maximum operator comfort. The comfort “ERGO GRIP”acts as a thermal protector and isolates vibrations. A spool valve system delivers slow, heavy blows necessary to drive rivets. An extremely sensitive teasing throttle permits precise control.

General

  • Air Inlet: 1/4” NPT Standard
  • Air pressure: 90 psi (620 kpa).
  • Shank Diameter .401”

Specifictions

  • Aluminum Capacity: 5/16"
  • Steel Capacity: 1/4"
  • Blows/Minute: 1250
  • Bore: 3/4" (19.1 mm)
  • Stroke: 3-7/8" (98.4 mm)
  • Length: 9-15/16" (252 mm)
  • Weight: 4.9 lbs (2.22 kg)
See also 10070 - Rivet Hammer 7X
