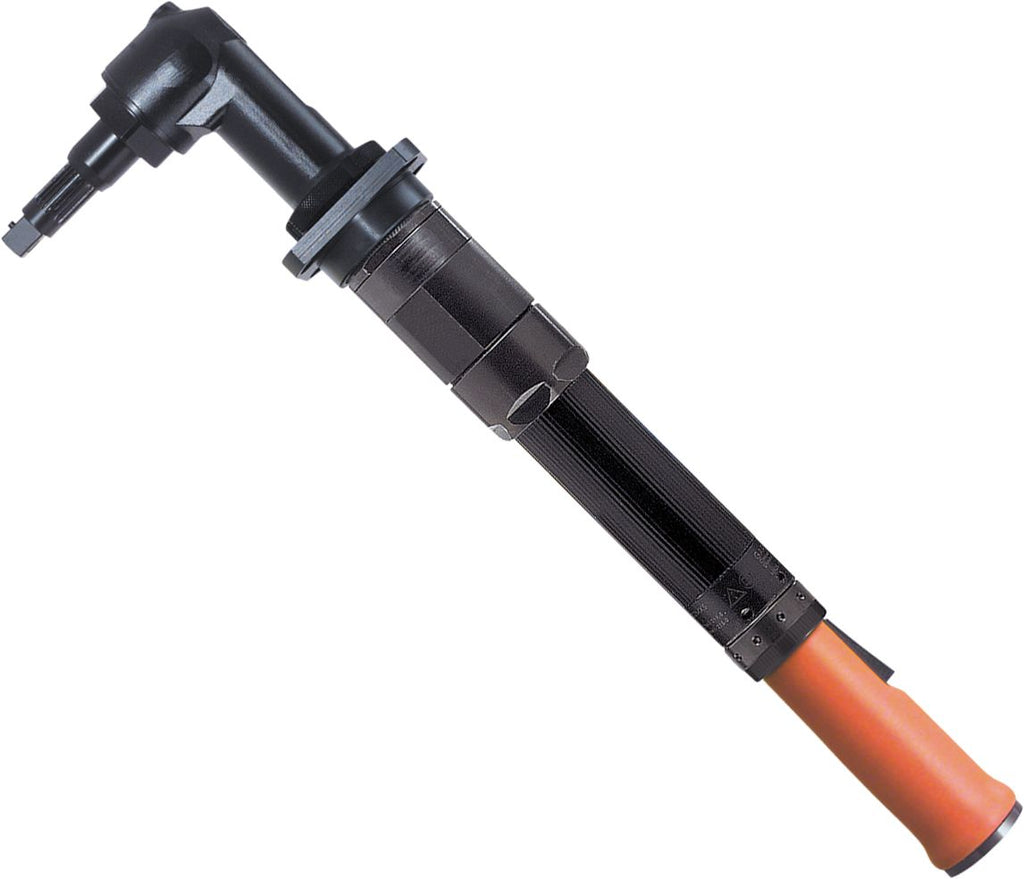

18EAE30S131 - 18 Series Corded Electric Transducer Control Right Angle Floating Spindle (5.1-30 NM)

ClecoSKU: SM-0019

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Features

  • Brushless Operation
  • Resolver Control
  • Transducer Control
  • Memory Intelligence
Model: 18EAE30S131
Torque Range Min: 4.43 ft/lbs
Torque Range Max: 22.1 ft/lbs
Free Speed: 655 1/min
Weight: 4.41 lbs
Output Drive: 3/8 Square Drive in|mm
Length: 16.0 in
Side To Center: 0.55 in
Angle Head Height: 2.76 in
See also 18EAE30S131 - 18 Series Corded Electric Transducer Control Right Angle Floating Spindle (5.1-30 NM)
