Description
Features
- Durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle
- Lightweight, ergonomic and durable handle designed with operator in mind
- Engineered to suit a wide range of applications, from fast-paced assembly to aerospace
- Grip material tested to withstand a range of industrial chemicals

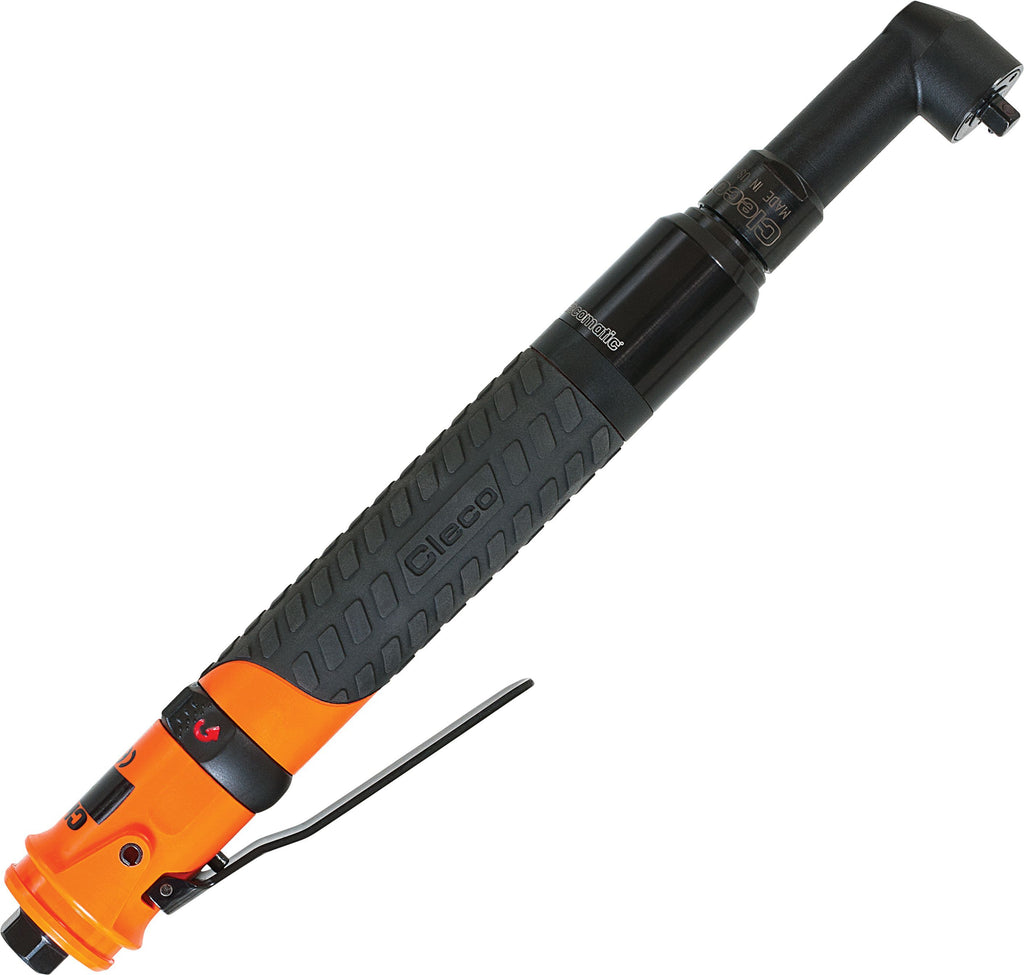

| Model: | 19RAA07AH2 |
| Torque Range Min: | 1.1 ft/lbs |
| Torque Range Max: | 5 ft/lbs |
| Free Speed: | 500 1/min |
| Weight: | 1.90 lbs |
| Output Drive: | 1/4 Square Drive in|mm |
| Length: | 12.9 in |
| Side To Center: | 0.50 in |
| Angle Head Height: | in |
| Air Consumption: | 11 SCFM |
| Air Inlet Size: | 1/8 in |
| Min Hose Id: | 1/4 in |
