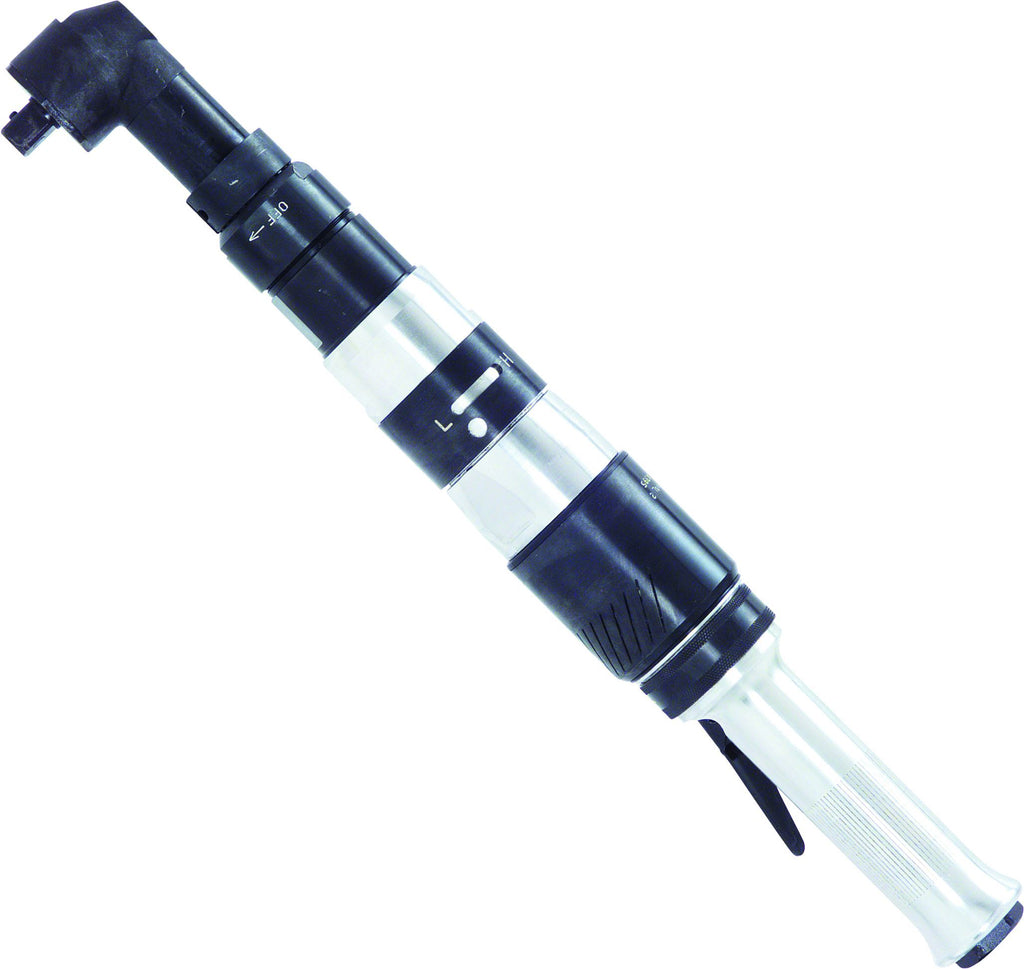

55RNAL-3P-4 - 55/75 Series Angle Nutrunner Clutch Shut-off Lever Start Collar Reverse

ClecoSKU: SM-0210

Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Features

  • Heavy-duty Cleco motor is the industry standard for reliability
  • Durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle
  • Planetary gears designed for tool speed changes with minimal parts service and replacement
  • Heavy-duty spindle bearings and splined retractable spindles reduces friction, improves torque repeatability, and prolongs life.
  • External Torque Adjustment
  • Rotating Exhaust Deflector
Model: 55RNAL-3P-4
Torque Range Min: 36.0 ft/lbs
Torque Range Max: 80.0 ft/lbs
Free Speed: 220 1/min
Weight: 7.4 lbs
Output Drive: 1/2 Square Drive in|mm
Length: 19.1 in
Side To Center: 0.72 in
Angle Head Height: 1.63 in
Air Consumption: 55 SCFM
Air Inlet Size: 1/2 in
Min Hose Id: 5/8 in
