Documentation
Description
Features
- Brushless Operation
- Resolver Control
- Transducer Control
- Memory Intelligence

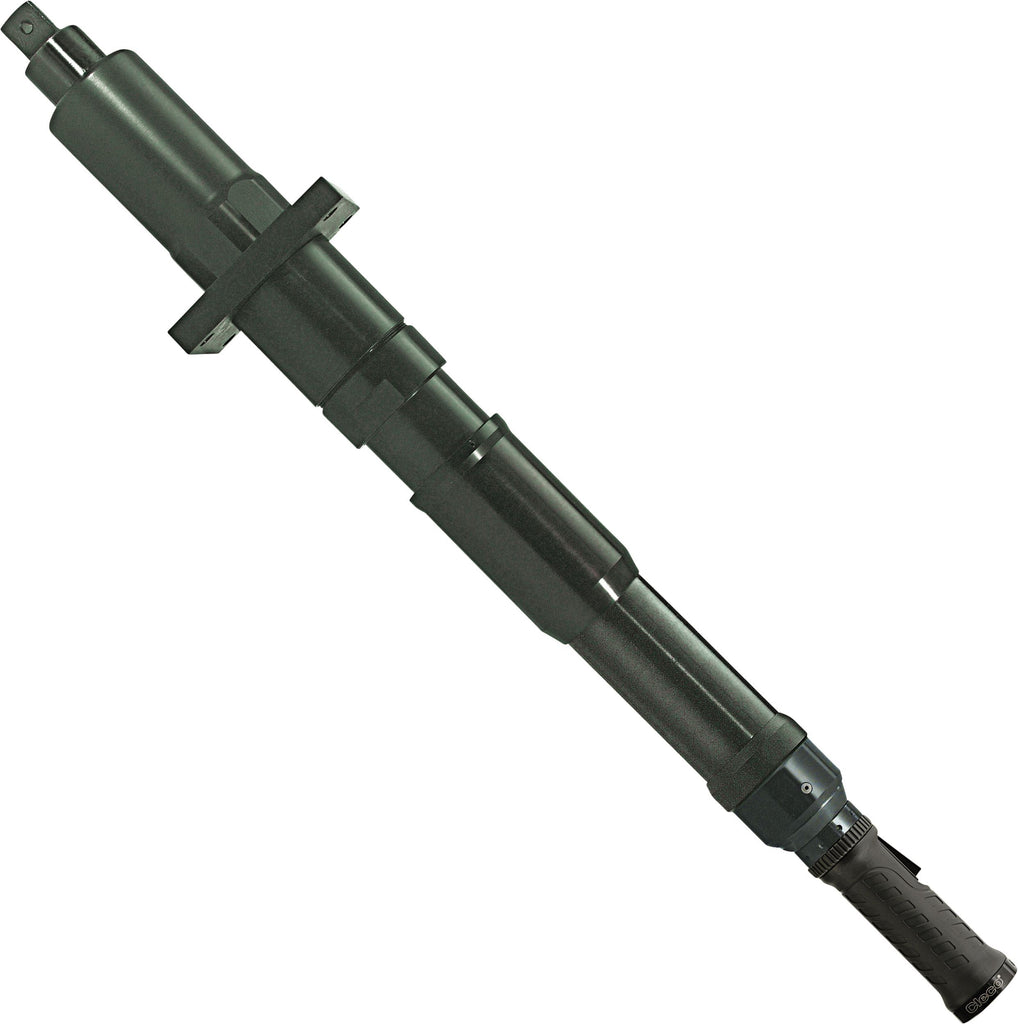

| Model: | 67ES610Z6 |
| Torque Range Min: | 90 ft/lbs |
| Torque Range Max: | 450 ft/lbs |
| Free Speed: | 50 1/min |
| Weight: | 16.1 lbs |
| Output Drive: | 3/4 Square Drive in|mm |
| Length: | 22.4 in |
| Side To Center: | 1.3 in |
