Description
Features
- Heavy-duty Cleco motor is the industry standard for reliability
- Durable Clecomatic Clutch delivers best-in-class torque repeatability and long calibration cycle
- Planetary gears designed for tool speed changes with minimal parts service and replacement
- Heavy-duty spindle bearings and splined retractable spindles reduces friction, improves torque repeatability, and prolongs life.
- External Torque Adjustment
- Rotating Exhaust Deflector

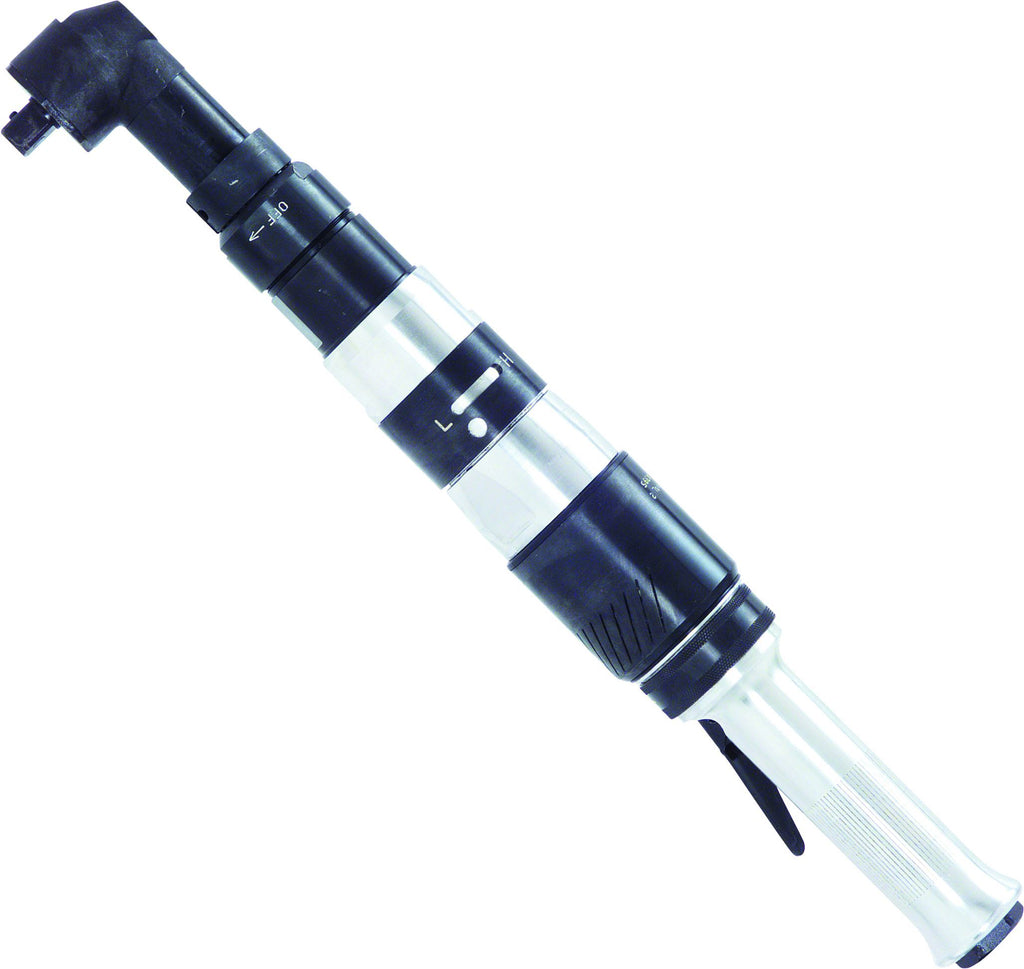

| Model: | 75RNAL-2V-4 |
| Torque Range Min: | 90.0 ft/lbs |
| Torque Range Max: | 190.0 ft/lbs |
| Free Speed: | 130 1/min |
| Weight: | 13.2 lbs |
| Output Drive: | 1/2 Square Drive in|mm |
| Length: | 21.9 in |
| Side To Center: | 1.09 in |
| Angle Head Height: | 2.50 in |
| Air Consumption: | 70 SCFM |
| Air Inlet Size: | 1/2 in |
| Min Hose Id: | 5/8 in |
