Description
Features
- Compact design increases productivity, saves weight, and is easy to integrate into any assembly environment
- Dependable Clecomatic clutch delivers consistent torque accuracy and repeatability
- Cleco motor is the industry standard for durability
- Easy to repair and maintain, with high parts interchangeability to other Cleco products

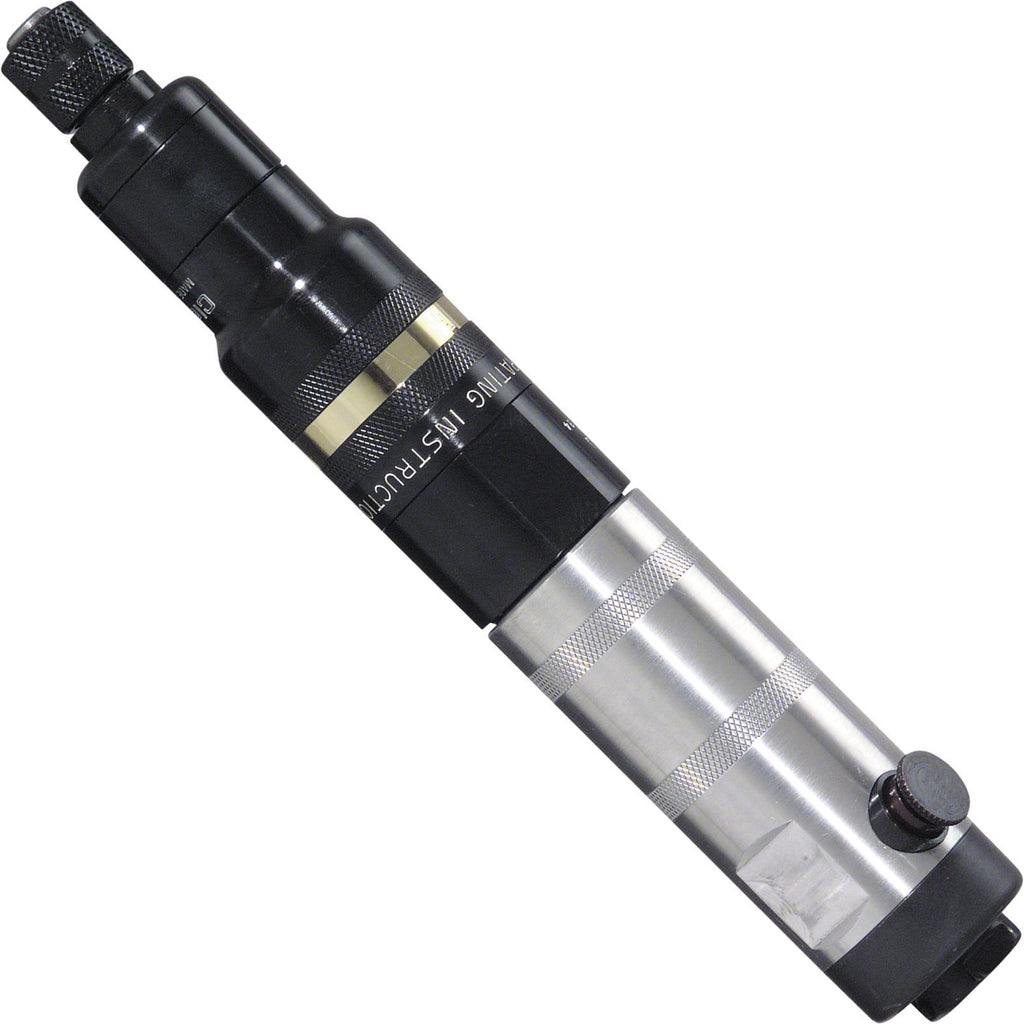

| Model: | 8RSA-30BQ |
| Torque Range Min: | 0.5 ft/lbs |
| Torque Range Max: | 2.5 ft/lbs |
| Free Speed: | 2500 1/min |
| Weight: | 2.12 lbs |
| Output Drive: | 1/4” Hex Quick Change in|mm |
| Length: | 8.9 in |
| Side To Center: | 0.77 in |
| Air Consumption: | 19.1 SCFM |
| Air Inlet Size: | 1/4 in |
| Min Hose Id: | 3/8 in |
