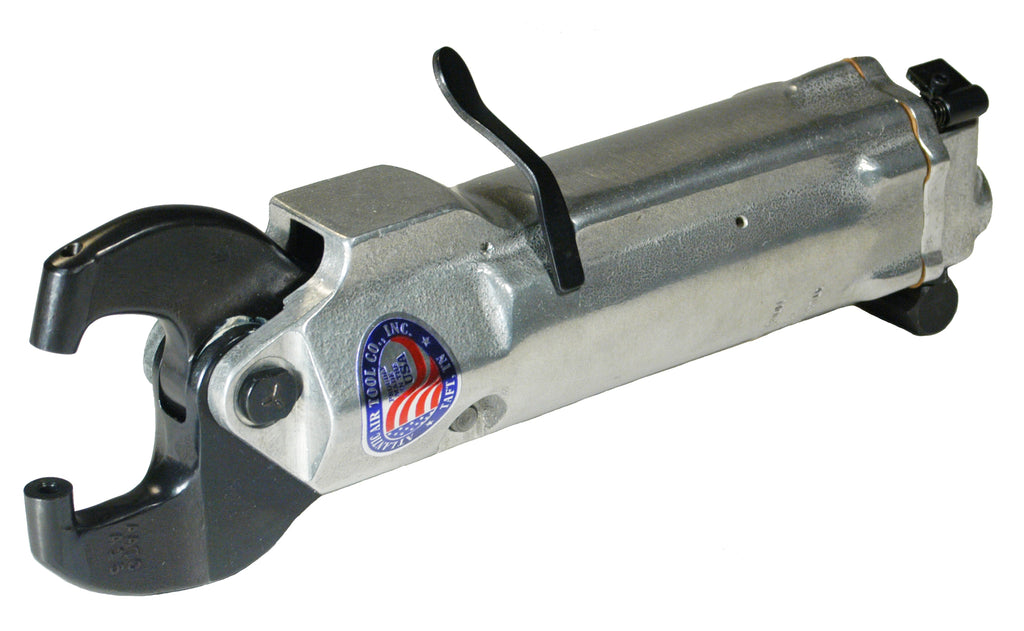

60A15HD - Pneumatic Alligator Squeezer
| Model | 60A15HD |
|---|---|
| Rivet Capacity Diameter - Aluminum | 3/16 (4.75) |
| Rivet Capacity Diameter - Steel | 5/32 (3.96) |
| Standard Yoke Dimensions - Reach | 1 1/2 (38.1) |
| Standard Yoke Dimensions - CLOSED HEIGHT | 7/8 (22.2) |
| Max Force with 90 PSI (6.21 Bar) Air Pressure PSI (KN) | 6000 (26.70) |
| MOVING JAW Max Travel | 5/8 (15.8) |
| MOVING JAW STROKE MAX POWER | 1/16 (1.57) |
| OVERALL LENGTH | 12 (304.8) |
| WEIGHT WITH JAW (LBS) | 5 1/2 (2.49) |
